Model SX-14004




Model SX-14004

Experiments

  • Study of reflex Klystron tube.
  • Frequency and guide wavelength Measurement
  • VSWR Measurement
  • Impedance Measurement

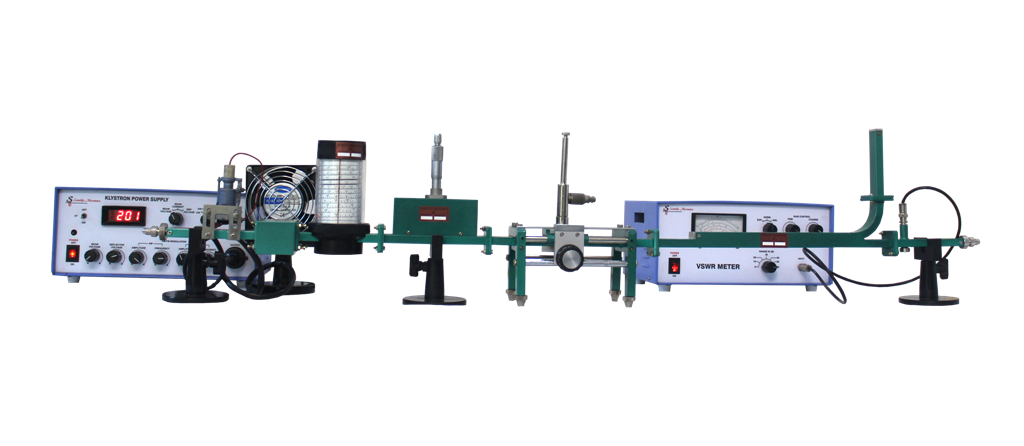

Microwave Training / Measurement Kits

Components & Instruments Model No. Qty.
Klystron Mount XKM-139 1
Klystron Tube 2K25 1
Isolator XI-137 1
Frequency Meter (DRF) XFM-126 1
Variable Attenuator XA-101 1
Slotted Section XSS-148 1
Tunable Probe XTP-153 1
Detector Mount XD-124 1
Movable Short XMS-146 1
Matched Termination XMT-157 1
Waveguide Stand SX-149 5
Cooling Fan XCF-122 1
VSWR Meter VS-115 1
Klystron Power Supply KPS-610 1
Components & Instruments Model No. Qty.
Fixed Attenuator : 3 db XA-103 1
Fixed Attenuator : 6 db XA-106 1
Fixed Attenuator : 10db XA-110 1
Variable Attenuator XA-101 1
Magic Tee XMT-140 1
M.H.D. Coupler : 3 db XMC-203 1
M.H.D Coupler : 10 db XMC-210 1
Cross Directional Coupler:20db XCC-116 1
T. Circulator XTC-115 1
Y. Circulator XYC-116 1
BNC Cable 1
Fasteners 1
Tool Kits 1Set
