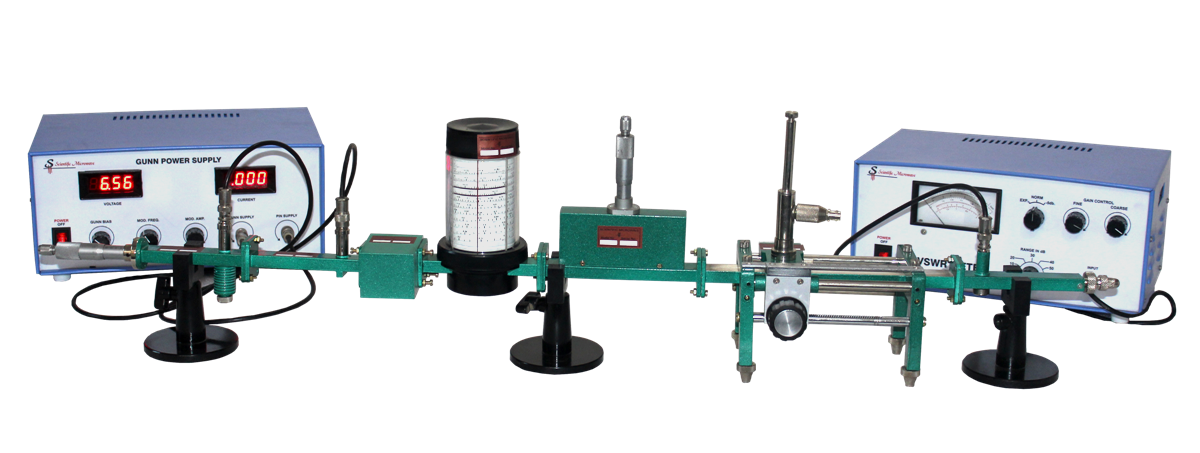

Model SX-14001


Model SX-14001

Experiments

  • Study of Gunn Oscillator
  • Frequency and guide wavelength Measurement
  • VSWR Measurement
  • Impedance Measurement

Microwave Training / Measurement Kits

Components & Instruments Model No. Qty.
Gun Oscillator XG-130 1
Pin Modulator XPM-141 1
Isolator XI-137 1
Frequency Meter (DRF) XFM-126 1
Variable Attenuator XA-101 1
Slotted Section XSS-148 1
Tunable Probe XTP-153 1
Detector Mount XD-124 1
Movable Short XMS-146 1
- - -
Components & Instruments Model No. Qty.
Matched Termination XKM-157 1
S.S.Turner XSS-161 1
Waveguide Stand XS-149 5
Cooling Fan XCF-122 1
VSWR Meter VS-115 1
Gunn Powder Supply GS-610 1
BNC Cable 2
TNC Cable 1
Fasteners 1 Set
Tools Kit 1
